obscura_tools package

Submodules

obscura_tools.radome_obscura module

@author: Boxx

obscura_tools.radome_obscura.radome(distance, height, radius, azCorrection, filename=None, threshold=5, resolution=360)

Create azimuth and elevations for radome obscura

Creates azimuth and elevation arrays for a radome obscura defined by distance, height, radius, azCorrection. Accepts a filename for csv storage. Does not save file if none is given. Optional tuning parameters are threshold, and resolution.

Args:

distance (double): the distance from the transmitter to the

radome center in meters

height (double): the height difference between center of beam

and radome center in meters (value is negative if radome center is above center of beam)

radius (double): radius of the obscura radome in meters azCorrection (int): azimuth correction in degrees

Kwargs:

filename (string): filename to store array threshold (int): error correction threshold. default = 5 resolution (int): determines the number of points in the meshgrid as

res^2. default = 360

plot (bool): set to true to plot radome meshgrid. default = False

Returns:

python dictionary containing azimuths array, elevations array and points array

Example:

Find the obscura azimuth and elevations vectors for a 20 meter radius radome that is 60 meters away from the radiating source and has a center 6 meters above it. The azimuth correction is 300 degrees.

>>> import obscura_tools.radome_obscura as obscura
>>> import pandas as pd
>>> ans = obscura.radome(60, -6, 20, 300)
>>> table = pd.DataFrame({'azimuths': ans['azimuths'], 'elevations': ans['elevations']})
>>> table.head()

<index>	azimuths	elevations
0	281	9.028552
1	282	12.343207
2	283	14.459659
3	284	16.107143
4	285	17.472889

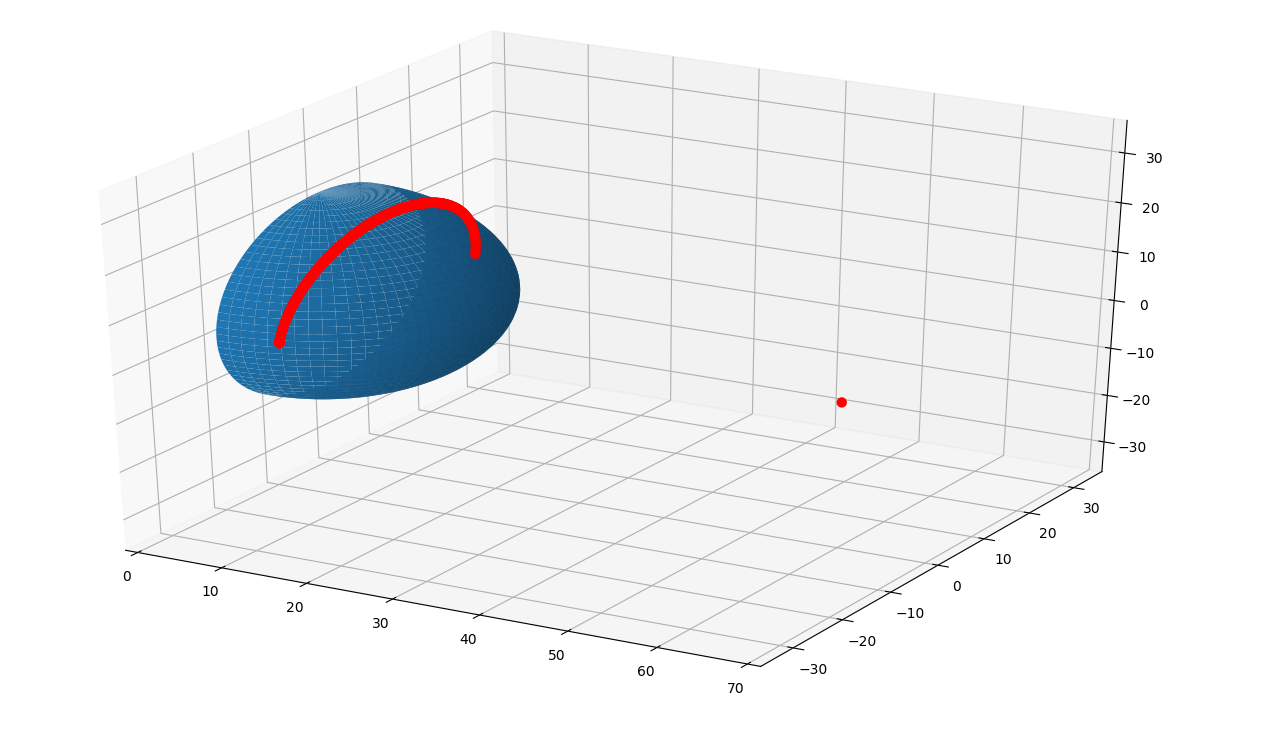

Use the points key to plot a 3D representation of the obscura.

>>> import matplotlib.pyplot as plt
>>> from matplotlib import cm
>>> from mpl_toolkits.mplot3d.axes3d import get_test_data
>>> from mpl_toolkits.mplot3d import Axes3D  # noqa: F401 unused import

>>> point = ans['points']
>>> # numpy variables
>>> pi = np.pi
>>> sin = np.sin
>>> cos = np.cos

>>> # variable simplifications
>>> R = radius
>>> N = 360

>>> theta = np.linspace(0, pi, N)
>>> phi = np.linspace(-pi / 2, pi / 2, N)
>>> theta, phi = np.meshgrid(theta, phi)
>>> X = R * sin(theta) * cos(phi)
>>> Y = R * sin(theta) * sin(phi)
>>> Z = R * cos(theta)

>>> fig = plt.figure()
>>> ax = fig.gca(projection='3d')
>>> surf = ax.plot_surface(X, Y, Z) #, rstride=1, cstride=1, cmap=cm.coolwarm,
                   # linewidth=0, antialiased=False)

>>> points = pd.DataFrame.from_dict(point, orient='index')
>>> ax.scatter3D(points[0], points[1], points[2], c='red', linewidth=3)

>>> x0 = points[0][0]
>>> if x0 > 2 * R:
>>>    upp = np.ceil(x0 + 10)
>>>    if upp % 2:
>>>        upp += 1
>>>    ax.set_xlim([0, upp])
>>>    ax.set_ylim([-upp/2, upp/2])
>>>    ax.set_zlim([-upp/2, upp/2])

>>> plt.show()

Module contents

Top-level package for obscura-tools.
